Bearing and seal overhaul set Tomos A35 / A52 / A55 big

Engine rebuild set Tomos A35 / A52 / A55

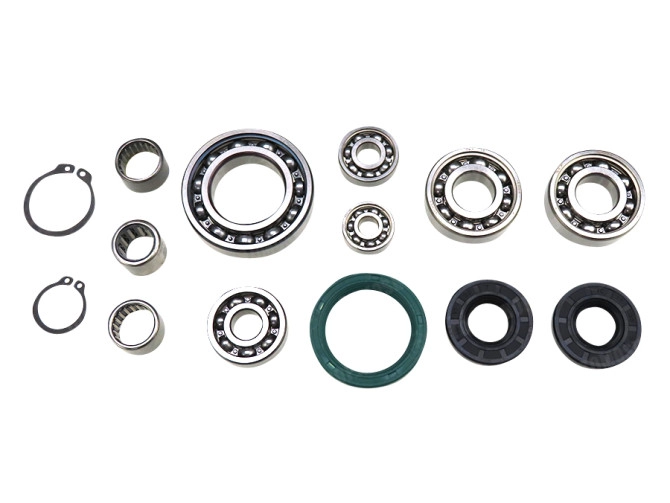

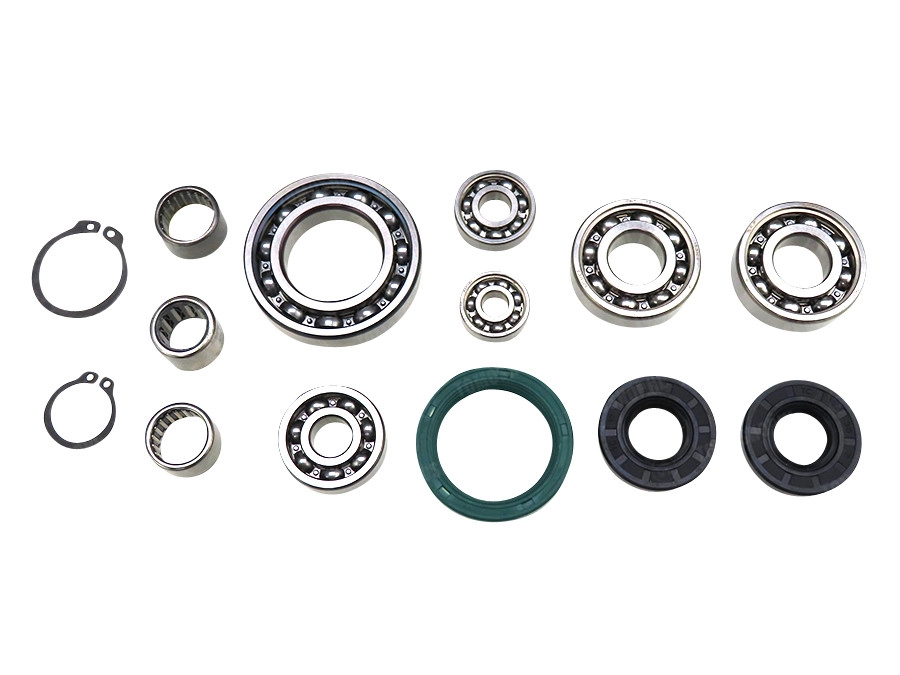

14-pieces bearing and seal kit for Tomos 2 speed automatic crankcases for Tomos A35 / A52 / A55 with kickstart. Set with 6x ball bearings, 3x needle bearings, 3x seals and 2x circlip for the following parts (see exploded view).

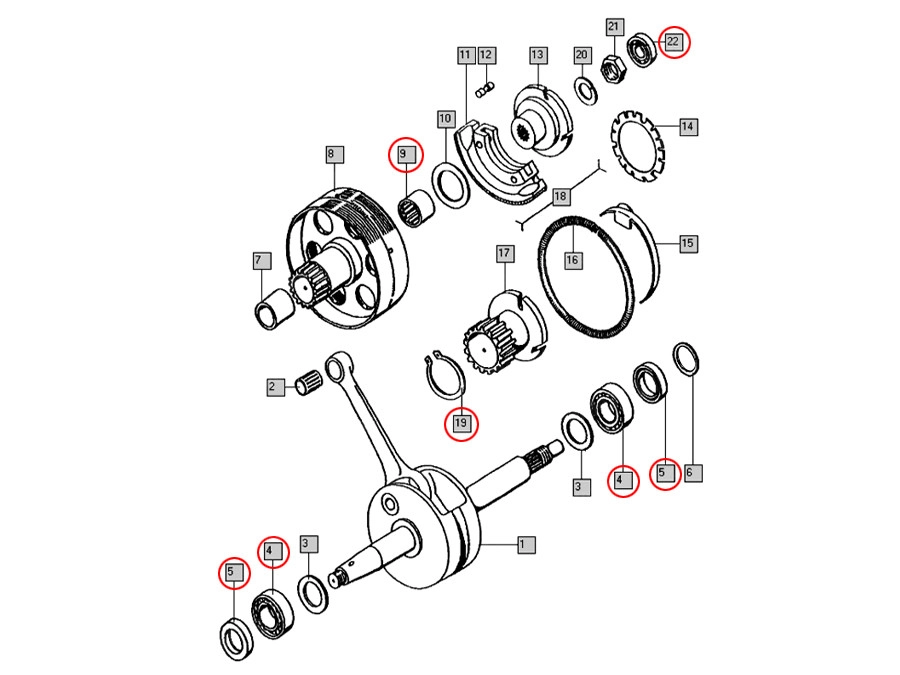

• Clutch
  #9 - 1x Needle bearing clutch house A35 / A55
  #19 - 1x Circlip clutch (A28)
  #22 - 1x Bearing 608 engine cover clutch


• Crankshaft
  #4 - 2x Bearing crankshaft 6203 C3 SKF
  #5 - 2x Seal 17x35x7 crankshaft

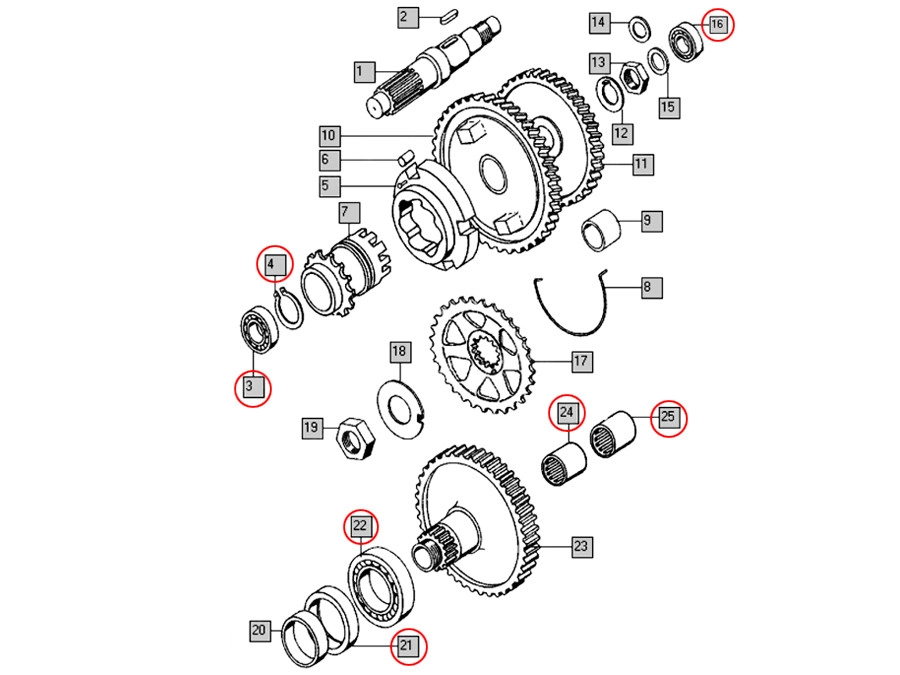

• Primary axle / sprockets
  #3 - 1x Bearing 6201 / C3 main shaft / primary axle
  #4 - 1x Circlip main shaft A20
  #16 - 1x Bearing 6000 engine cover 1st / 2nd gear sprocket
  #21 - 1x Seal 35x47x7 for Tomos A3 / S25 / A35 / A55 drive shaft
  #22 - 1x Bearing 6006 pedal crank shaft
  #24 - 1x Needle bearing front axle sprocket A35 035502 SCE 109P
  #25 - 1x Neede bearing front sprocket axle A35 035503 SCE 108

Order this set together with the required gaskets, clutch ATF oil,

Order the necessary gaskets, gearbox/clutch oil, any other parts for a complete engine overhaul! (see related products)

Tip, order a question mark spring and the O-rings for the drive sprocket also:

• Question mark spring clutch

• O-ring 16x3mm for drive plate Tomos

• O-ring 30x1.5mm for drive plate Tomos


Do you have a model with pedals? Then you also need the pedal crank seal 16x24x7.
