Cylinder Puch Monza 74cc Airsal Eurokit fast 8P + head Tomos

€ 183,50
Ex Tax: € 151,65
Tomoshop Directly available Directly available
Model: 10094
Tomoshop price Without shipping costs. Info about VAT.
BLACK FRIDAY
Tomoshop customer service

Do you need some help or advice?

Tomoshop info Check out our info center or contact us!

Description

Attention! Cylinder for the quick and handy craftsman!

  • This is a Puch Maxi cylinder that can be made to fit a Tomos A3 / A35 / A55 / various models.
  • Not for the novice wrencher!
  • Crankshaft stroke and stud mounting distance of a Tomos is the same as for a Puch Maxi.
  • To fit this cylinder to a Tomos, you will need to modify the exhaust flange of your exhaust, you will need to modify the manifold and you may need to boring your crankcase and/or reshape the ports.

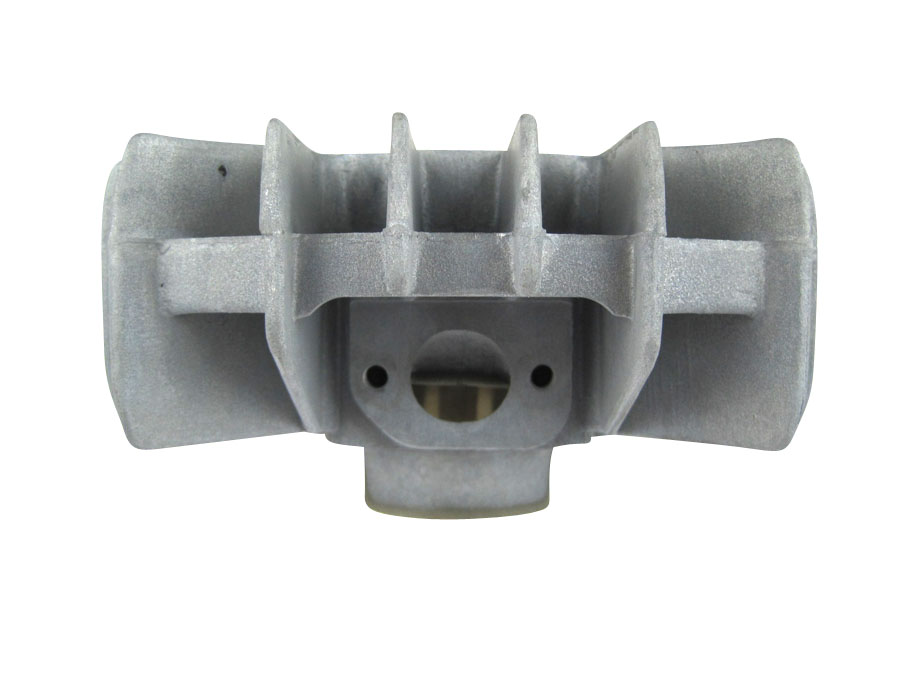

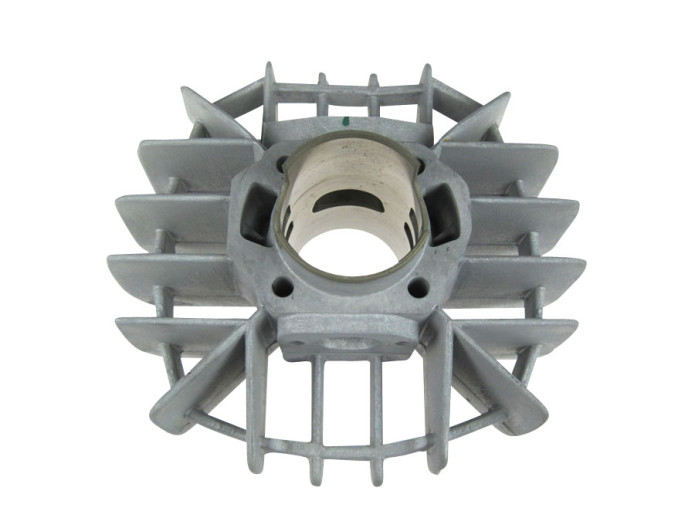

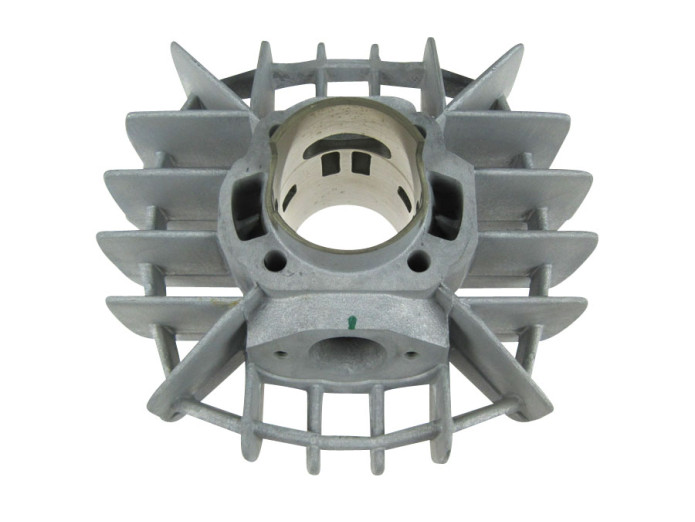

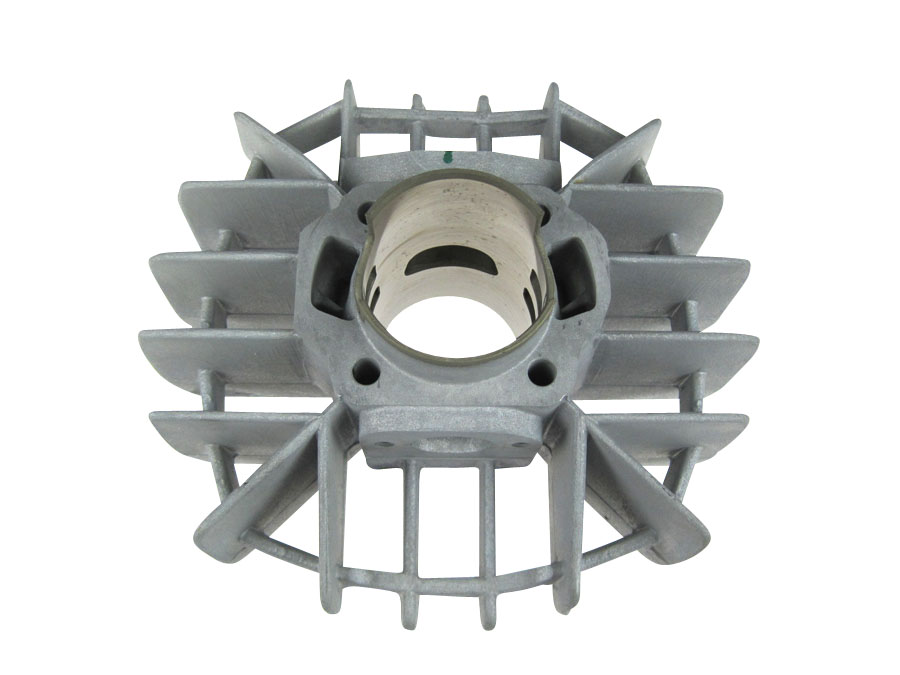

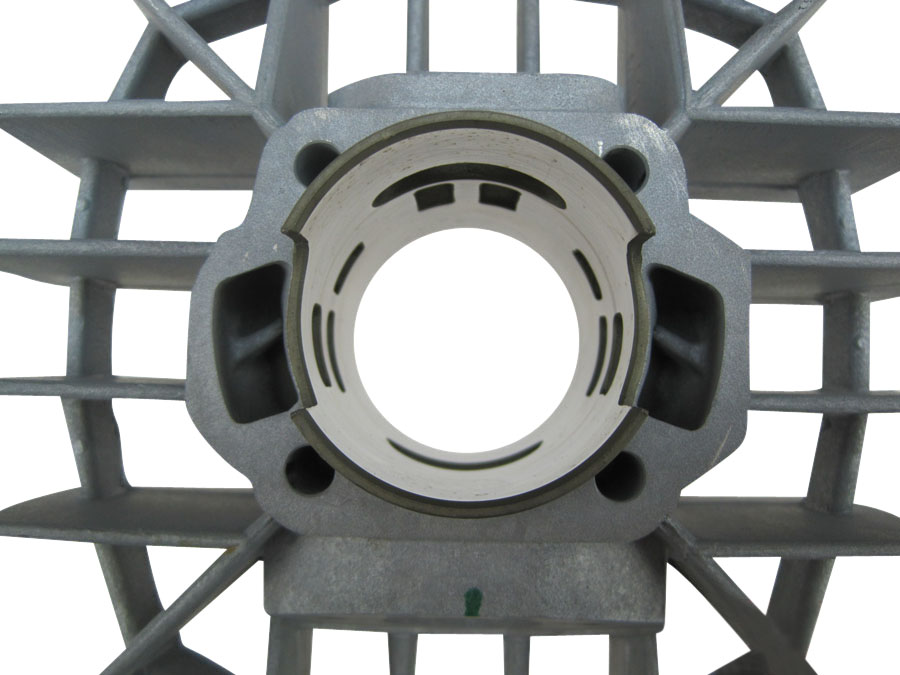

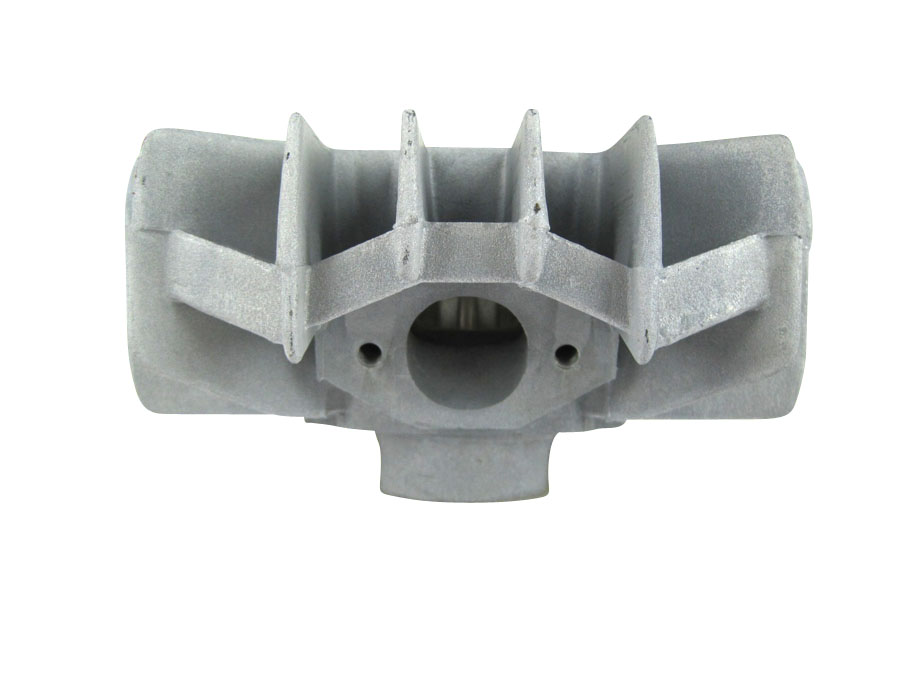

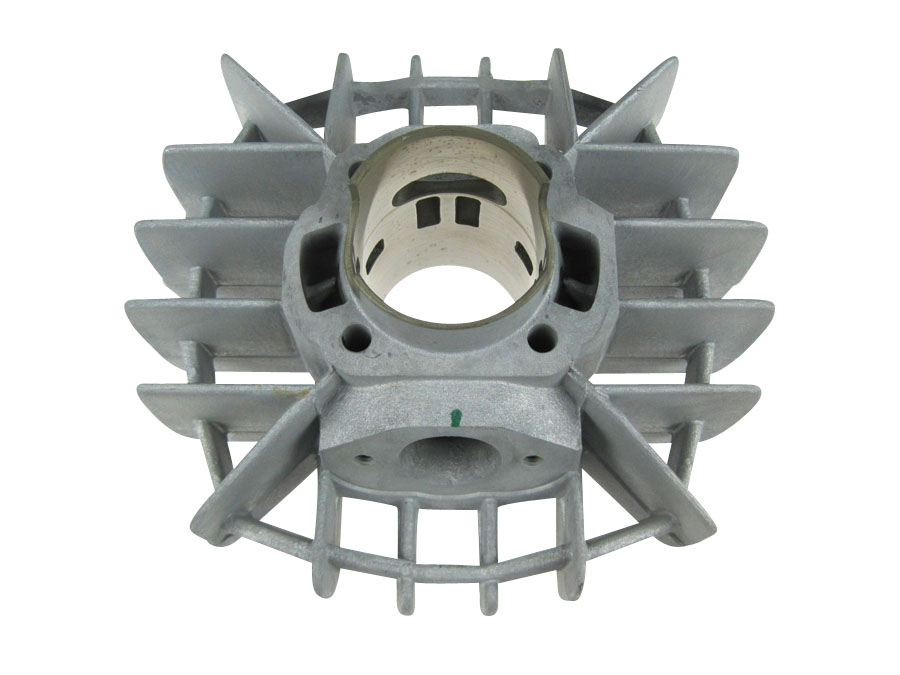

Airsal / Eurokit 74cc cylinder (47mm) Aluminum, Nicasilcoated.

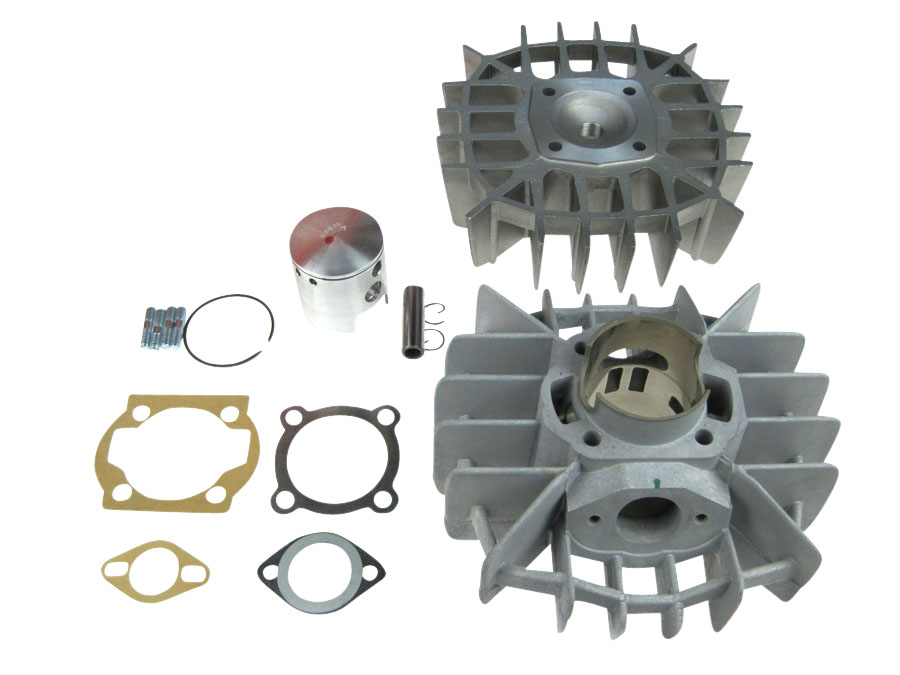

  • Cylinder head, piston (piston pin 12mm) and gasket set is included.
  • For Puch Condor / Monza / Cobra

After 15 gloomy years of absence, the insanely powerful king of the piston port cylinders is now locked, stocked and ready to tear up the streets once again!

  • Airsal adapted the piston, curved exhaust port instead of straight as the Maxi cylinder. The inlet studs are at the same measurements as regular Puch Maxi cylinders.
  • The only thing that’s left for you to do is match your engine cases to fit a 51mm cylinder sleeve.
  • Our advise is to use a 19mm carburetor or bigger
  • Inlet is 20mm.
  • Cylindersleeve outer diameter: 51mm

Preparation for assembly

  • We always advise to check and clean the cylinder thoroughly before installation and to finish the ports in the cylinder slightly with a 1000 grit sandpaper so that the edges are no longer so sharp due to the Nicasil coating, in order to extend the life of the cylinder/piston considerably.
View more Read more
Brand:Airsal
Model:10094
EAN:8434829004123
MPN:01030247
Category: Engine parts
Type product: Cylinder / head
Type product: Puch tuning cylinders
Weight:2000 gram

Spain-based Airsal officially started producing for the international moped market in 1986. With years of experience and their own R&D department, they have optimised the production of cylinders and accessories, such as pistons and cylinder heads. Production optimisation has ensured a high-quality product and a very competitive price. Tomoshop.nl in 50cc and 65cc. Tuning your moped even more extreme? If you are going to work on the crankcases, you can opt for 74cc Airsal with 8 ports (originally for Puch Maxi)! Complete cylinder sets are also for sale at Tomoshop with cylinder head and carburettor. Click here for the entire Airsal range.
