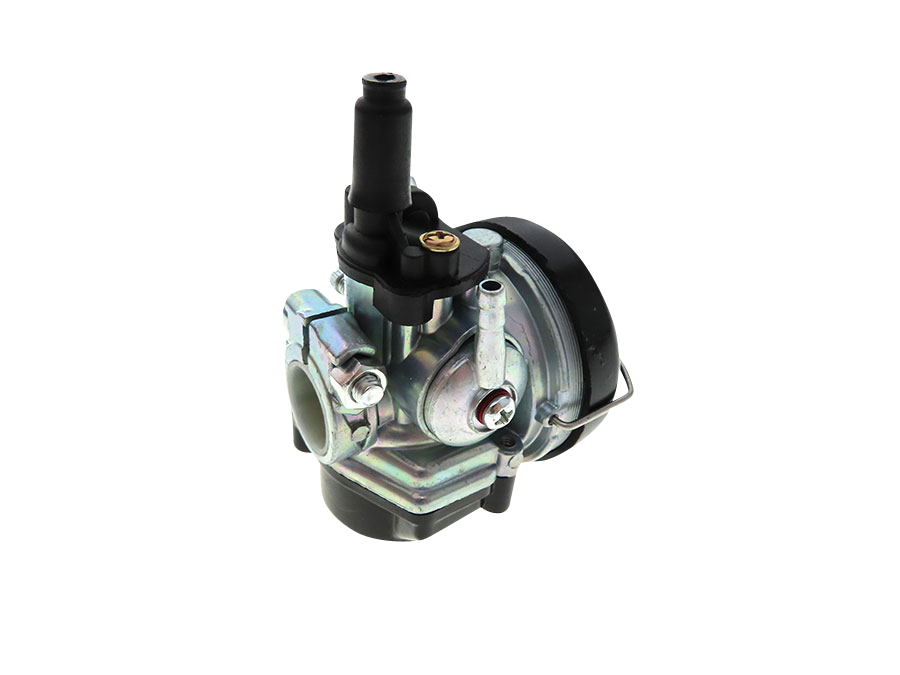

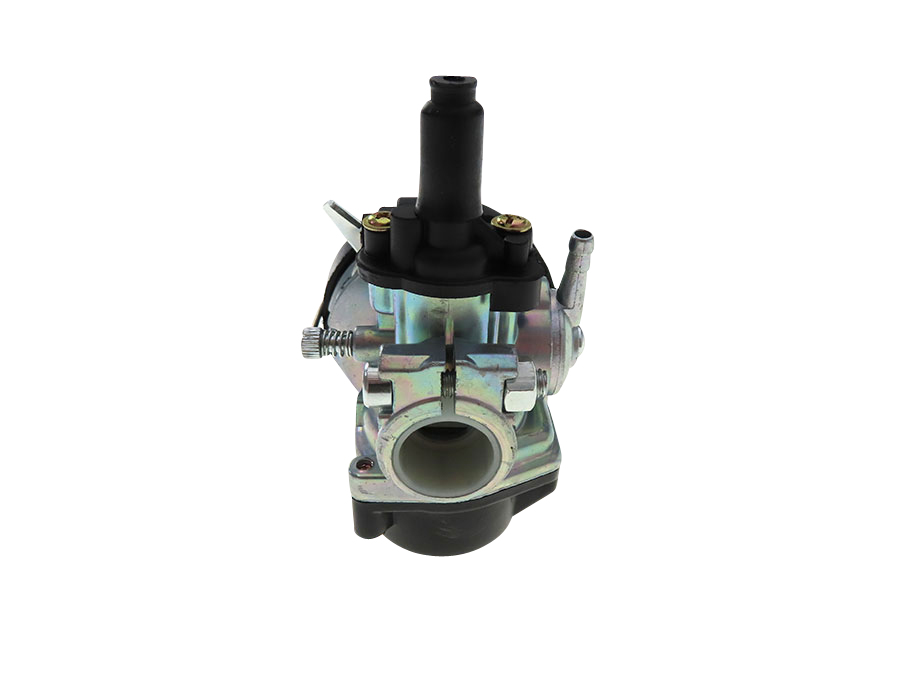

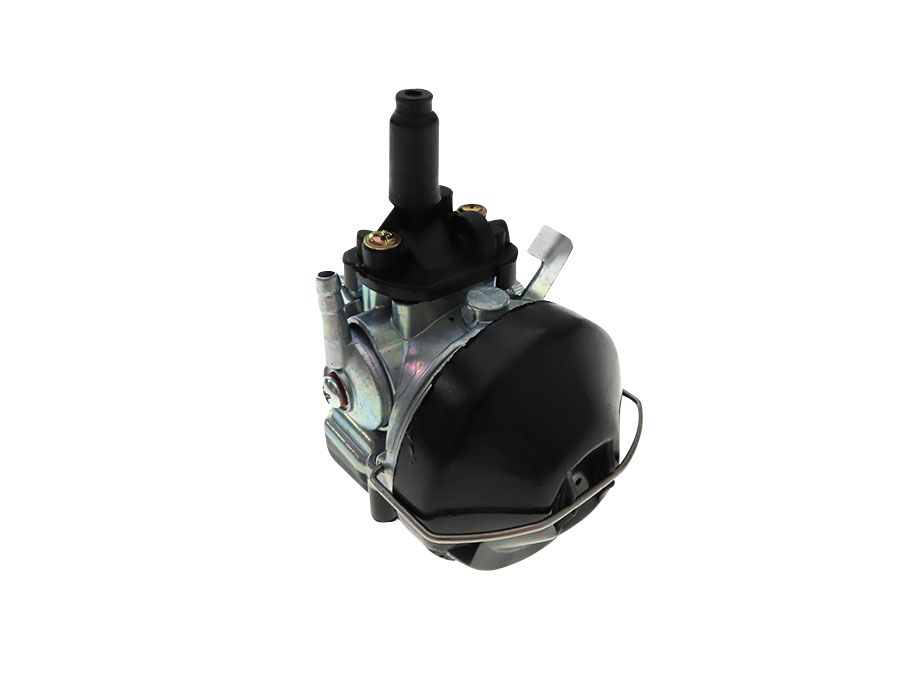

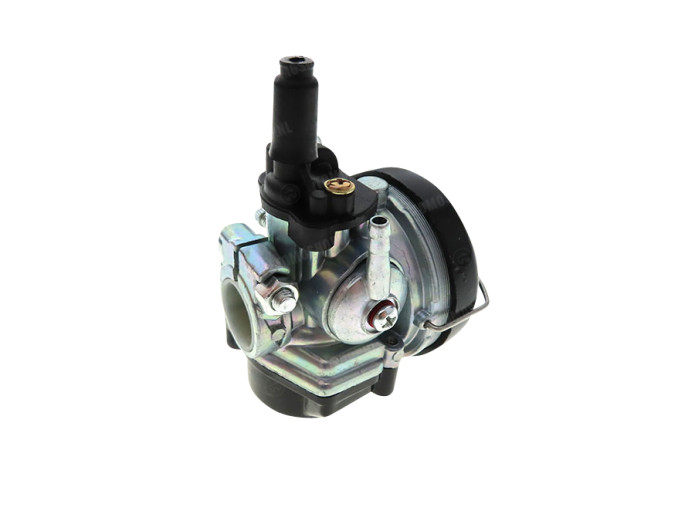

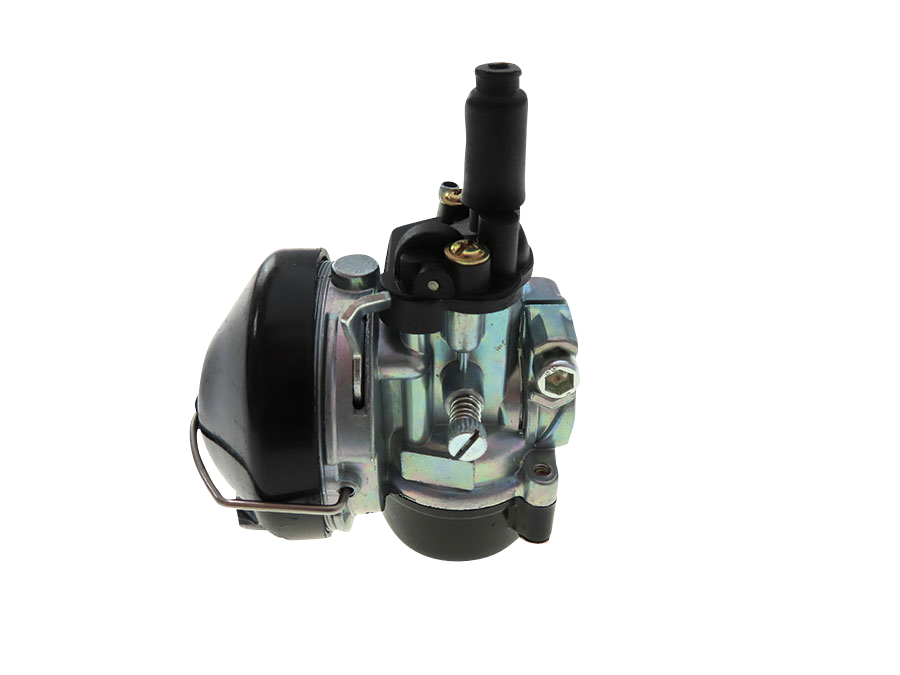

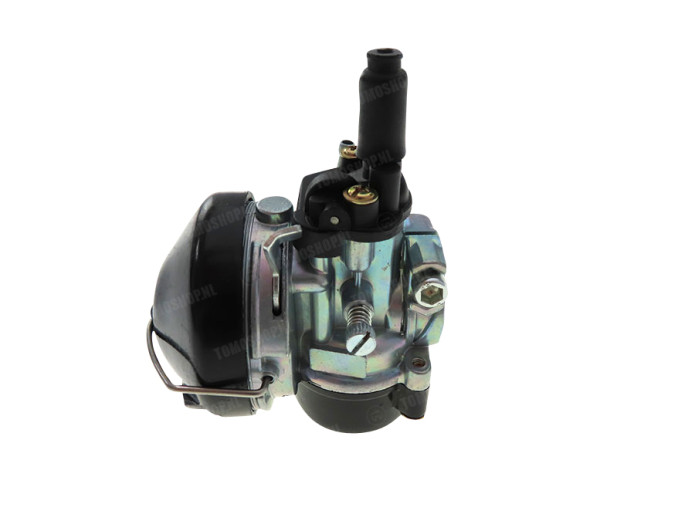

Dellorto SHA 15mm carburetor replica Tomos A35 / A52 / A55

Dellorto SHA 15mm carburetor replica Tomos A35 / various models

• Replica, model as Dellorto SHA 15mm
• Manifold connection: 21>19mm (for 18mm, please order the 21>18mm bush)
• Mesh filter with cover is included
• Nozzles are Dellorto 5mm
• Airfilter connection 60mm
• Included with a blanco 5mm jet

Recommendation to order along:

• Dellorto SHA carburetor nylon bush 21mm > 18mm


Note:

• If you have a manifold with 18mm connection diameter, order the 21mm > 18mm bushing with it! This is because the standard bushing in this replica carburettor is 21mm > 19mm. (see next point)

• Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!
• Due to casting tollerances the flow diameter may be +/- 14mm! Our advise is always to choose for a original Dellorto SHA as those sizes are proven.
• So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.


For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie
• Also for universal use
