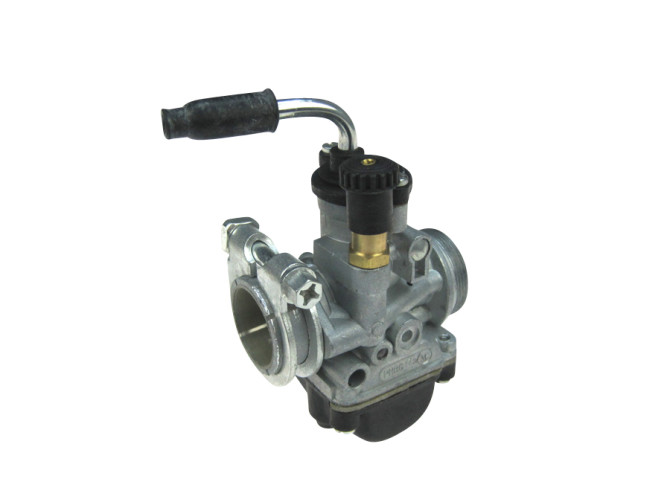

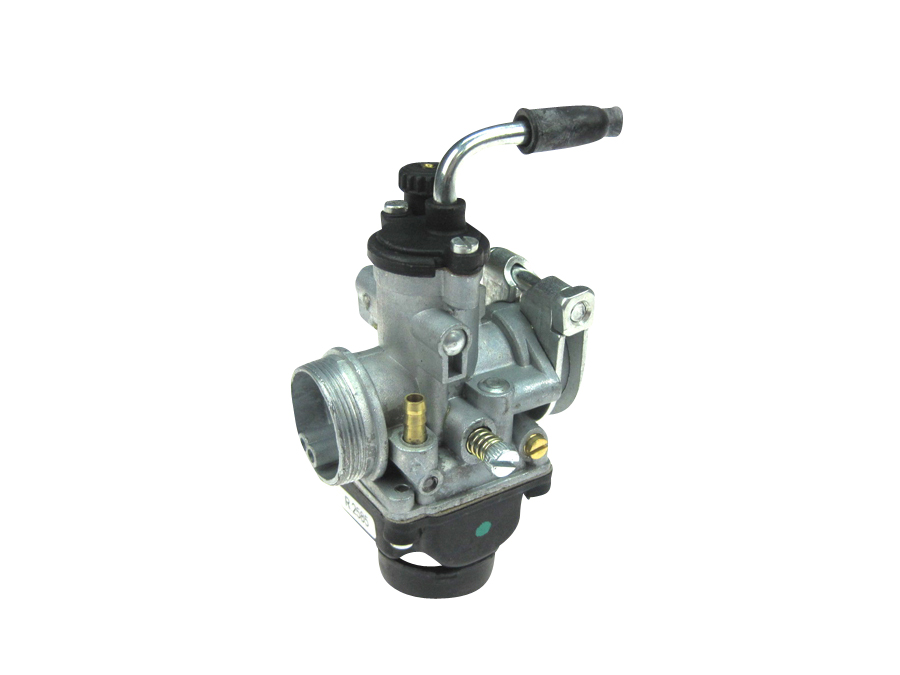

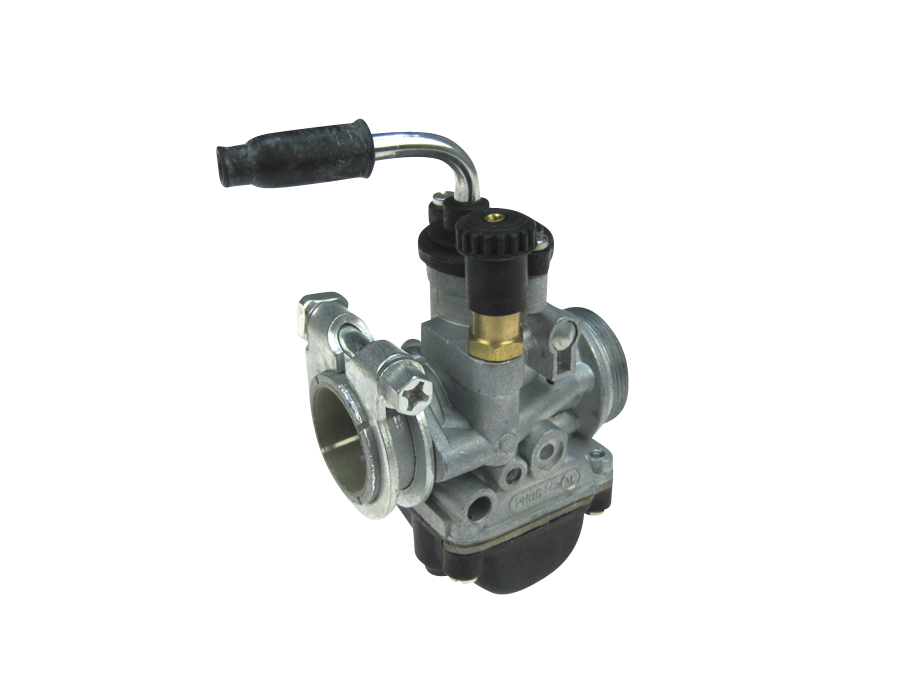

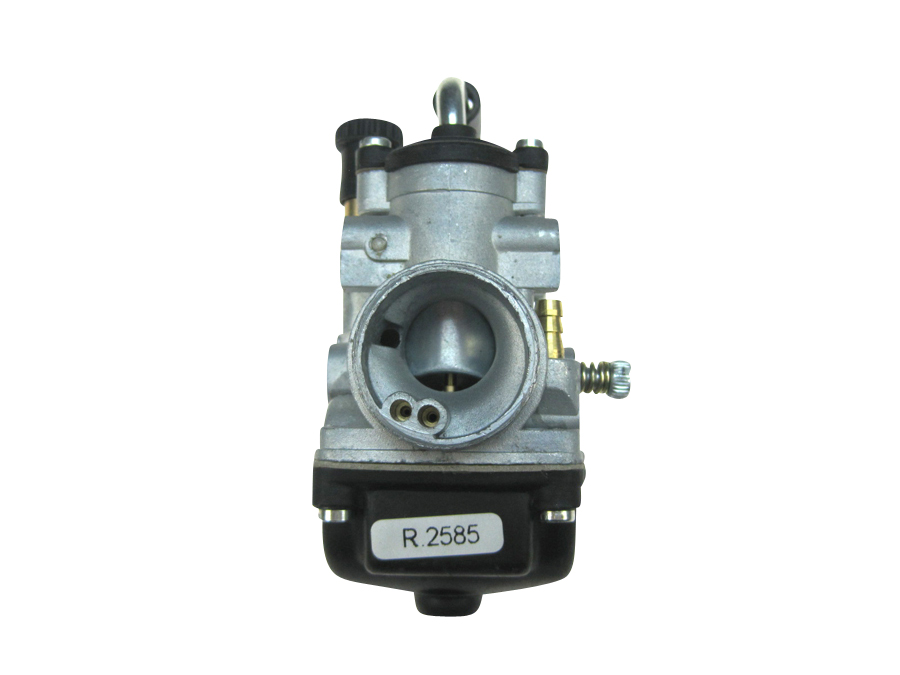

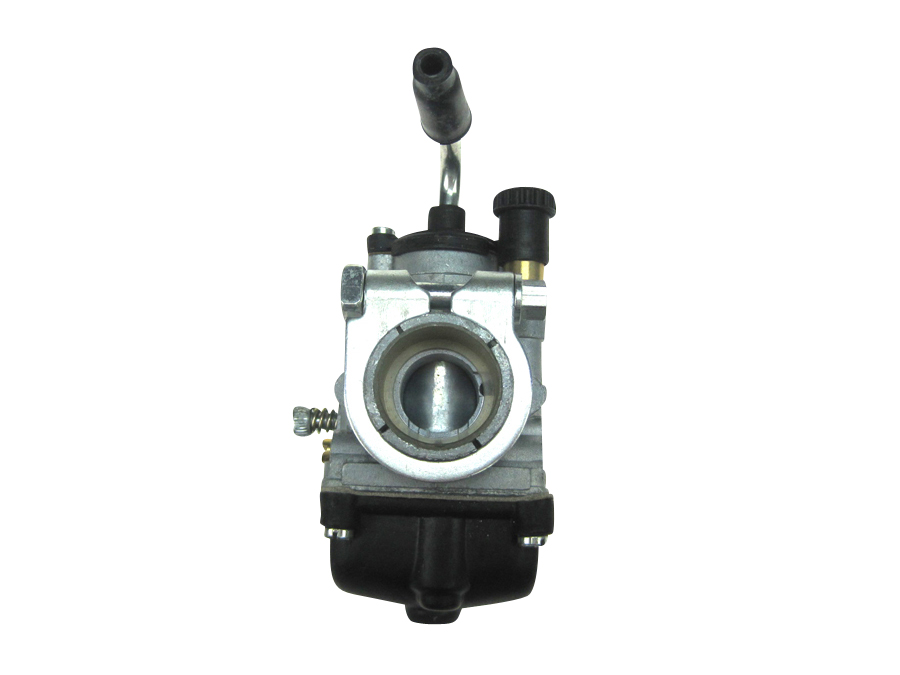

Dellorto PHBG 17.5mm carburetor replica cable choke

Dellorto PHBG 17.5mm carburetor replica cabel choke

• Model as Dellorto PHBG, very good replica
• Cable choke
• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors are delivered with a blanc nozzle/jet.
• Carburettors should always be cleaned before installation

Note:

• Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!

• The float chamber is mounted with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
• The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.

With a matching manifold applicable to various Tomos models:

• Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.

With a matching manifold also universally usable for:

• Kreidler Florett  / RMC /  RM /  Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS /  Puch / Maxi / E50.
