Exhaust Tomos 4L / APN-4 28mm black

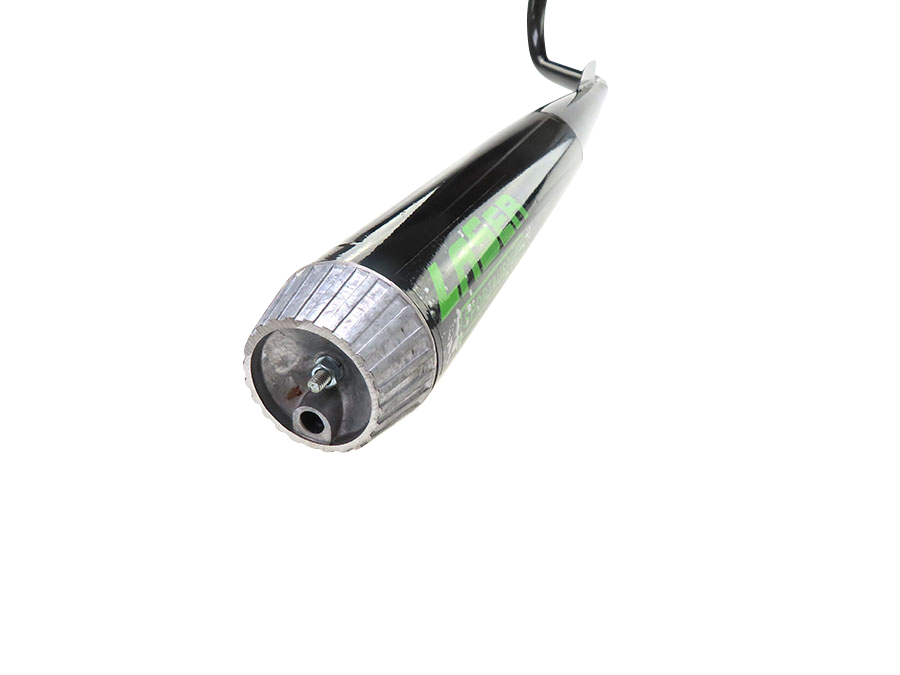

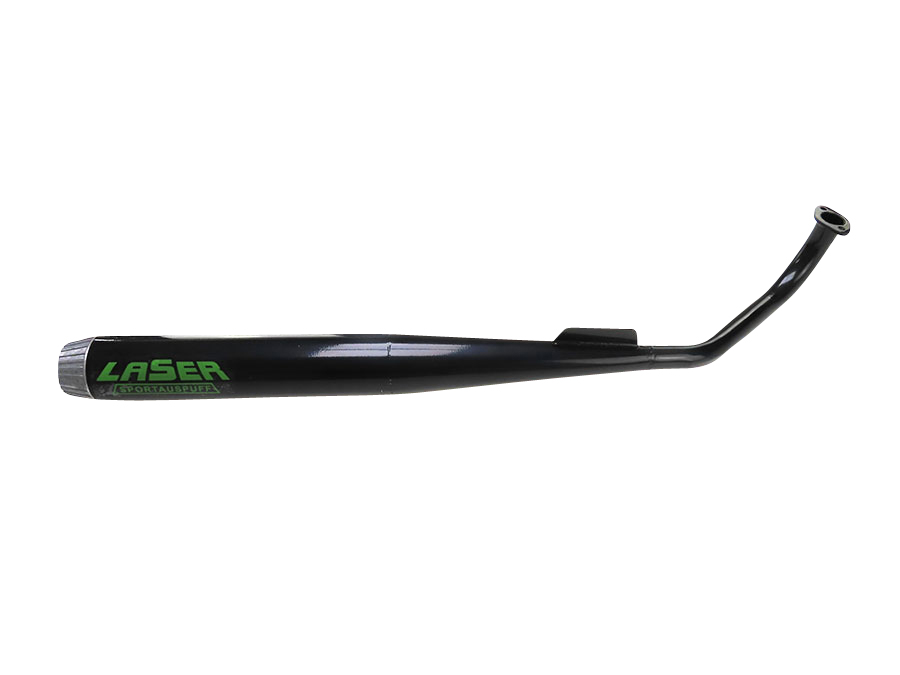

Exhaust Laser model Tomos 4L / APN-4 as original

• Black

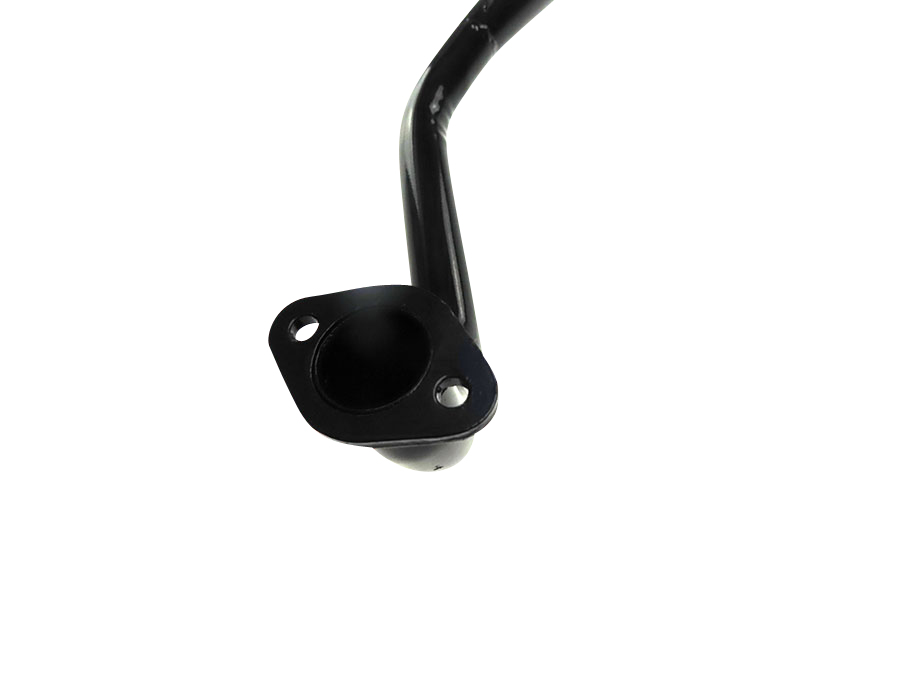

• 28mm manifold (outer diameter)

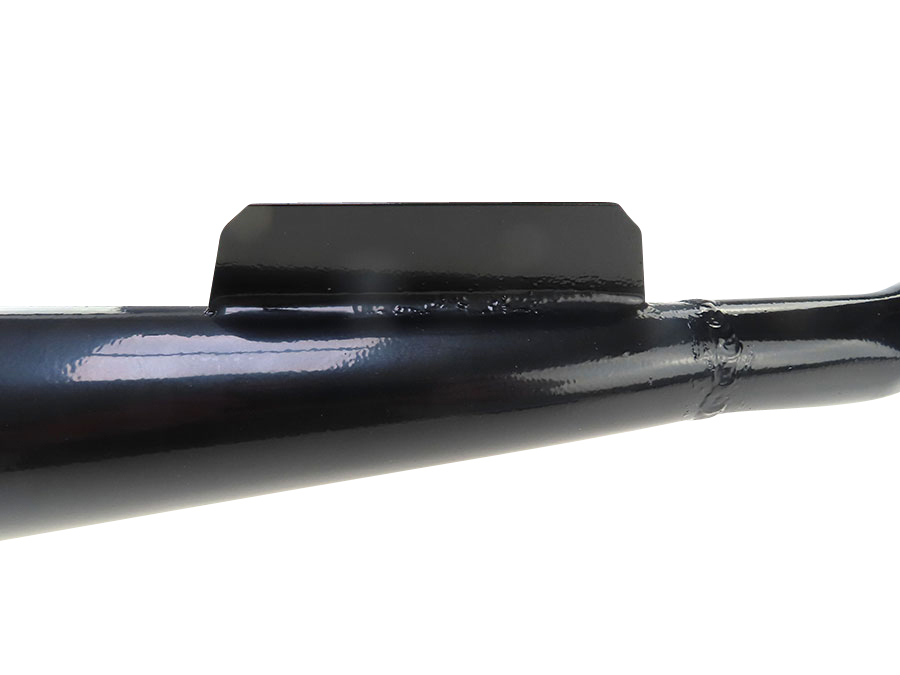

• Mounting point does not contain any holes, you need to make them yourself so you can mount them perfectly.

• Note: black coating may have some scratches/marks due to transport/storage!

Tips:

• Use our long brass M6 nuts in combination with hardened studs (see related products). This so you can easily and fully tighten the exhaust flange. Brass is also softer than steel, so it will not seize.
• Always use a new exhaust gasket when fitting an exhaust

When using all exhausts, black painted, chrome and blanc exhausts, heat build-up at the exhaust manifold can cause the following:

• At black outlets the paint can dissolve a little.
• Chrome and blanc exhaust manifolds may discolour

If the nozzle is too small or if the ignition is set incorrectly, the exhaust port becomes very hot and discoloring and dissolve of the paint on the exhaust manifold will occur faster than a perfectly adjusted engine. We give no guarantee on discoloration or solving of the paint on the exhaust manifold!

Dimensions:

• A: 250mm
• B: 560mm
• C: 26mm
• D: 28mm
• E: 6mm
