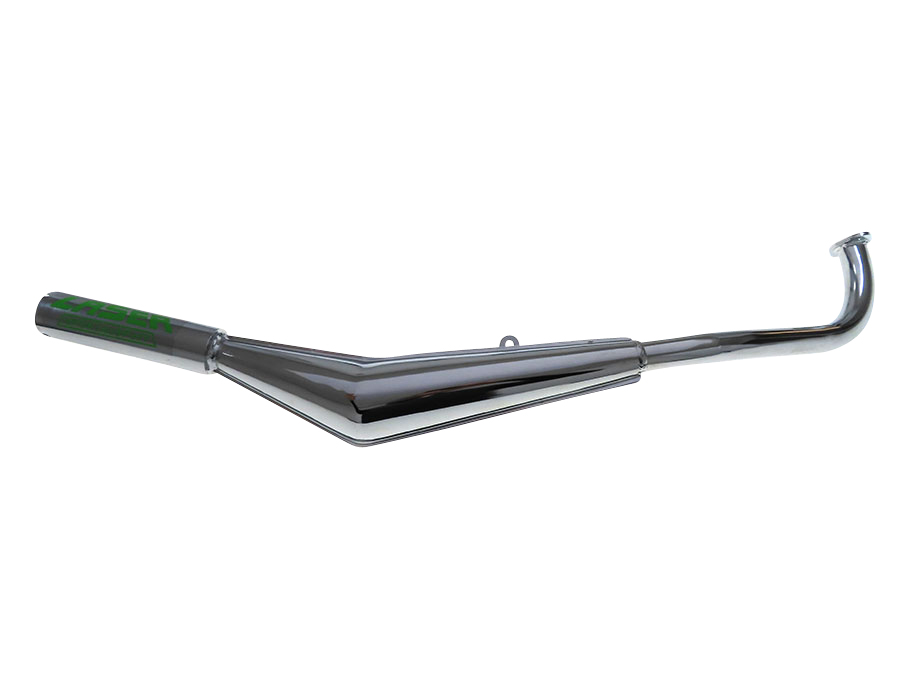

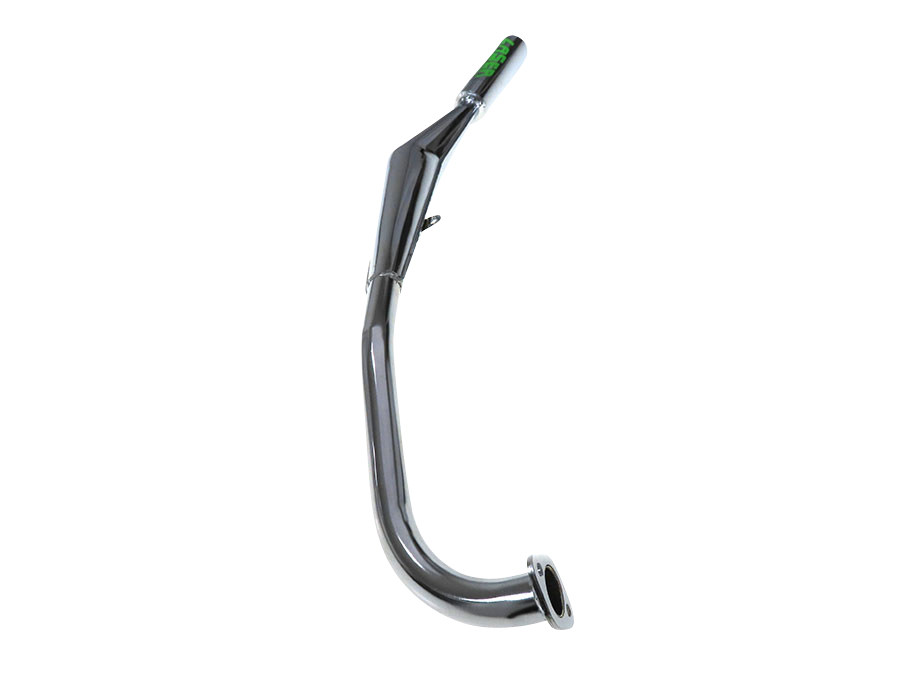

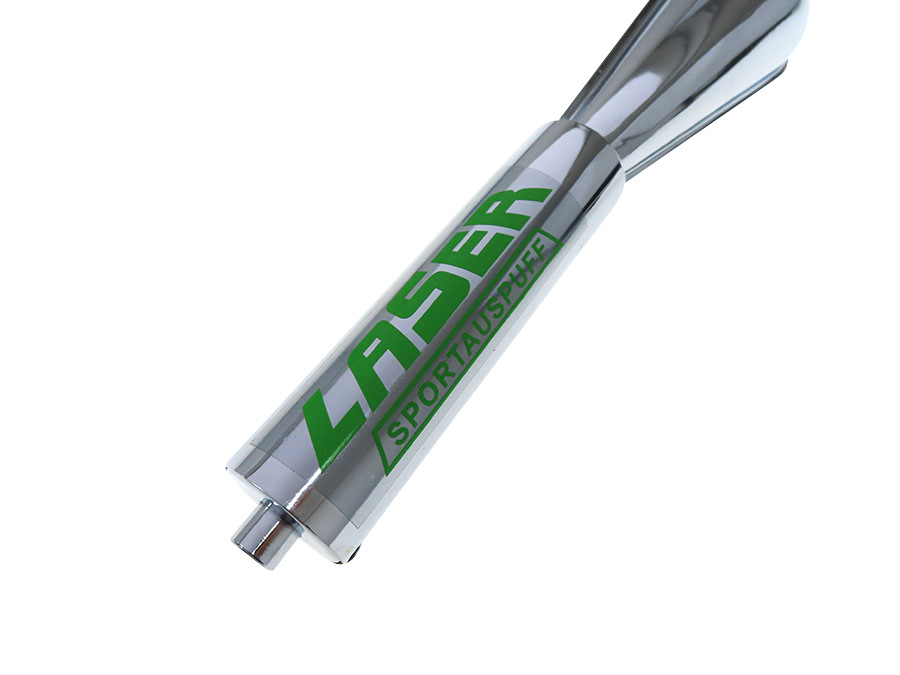

Exhaust Tomos A3 / A35 28mm Laser Resonance chrome

Exhaust Tomos A3 / A35 28mm Laser Resonance chrome

• Tomos A3 / A35 / Standard / Quadro / Flexer / Luxe / Wizz'rd / Taxxity / Califone / Limited / various models
• Works great with a 65cc cylinder and a 15mm carburetor for more top-end power, but also works on a 50cc standard / fast cylinder setup.

• Chrome

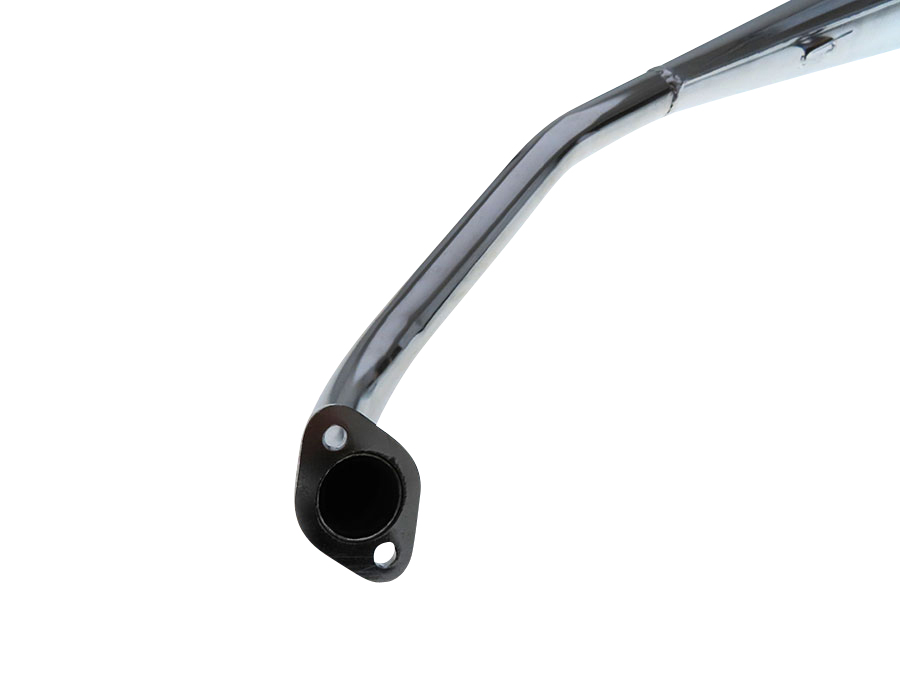

• 28mm manifold (outer diameter)
• Exhaust mounting to frame Euro1 model, on a euro2 frame the bend may be slightly against the footpegs.


Note: chrome may have some scratches/marks due to transport/storage!

Tips:

• Use our long brass M6 nuts in combination with hardened studs (see related products). This so you can easily and fully tighten the exhaust flange. Brass is also softer than steel, so it will not seize.
• Always use a new exhaust gasket when fitting an exhaust
•


When using all exhausts, black painted, chrome and blanc exhausts, heat build-up at the exhaust manifold can cause the following:

• At black outlets the paint can dissolve a little.
• Chrome and blanc exhaust manifolds may discolour

If the nozzle is too small or if the ignition is set incorrectly, the exhaust port becomes very hot and discoloring and dissolve of the paint on the exhaust manifold will occur faster than a perfectly adjusted engine. We give no guarantee on discoloration or solving of the paint on the exhaust manifold!

Dimensions:

• A: 290mm
• B: 590mm
• C: 25mm
• D: 28mm
• E: 7mm
