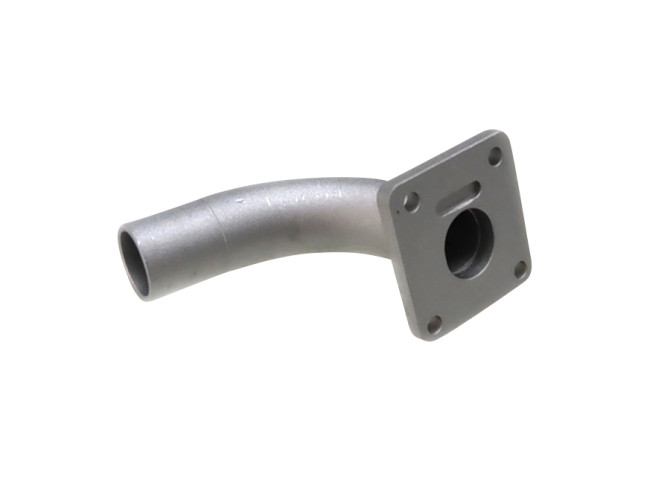

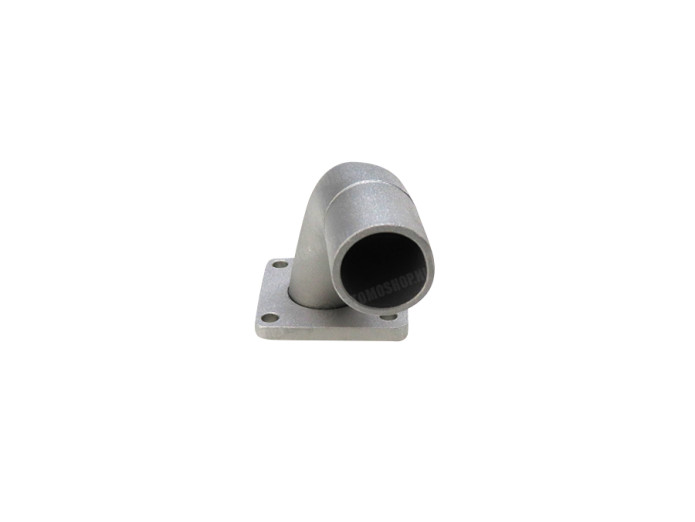

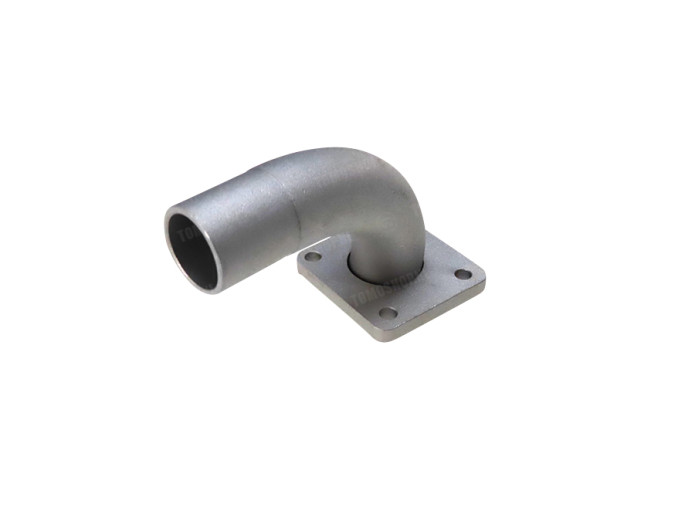

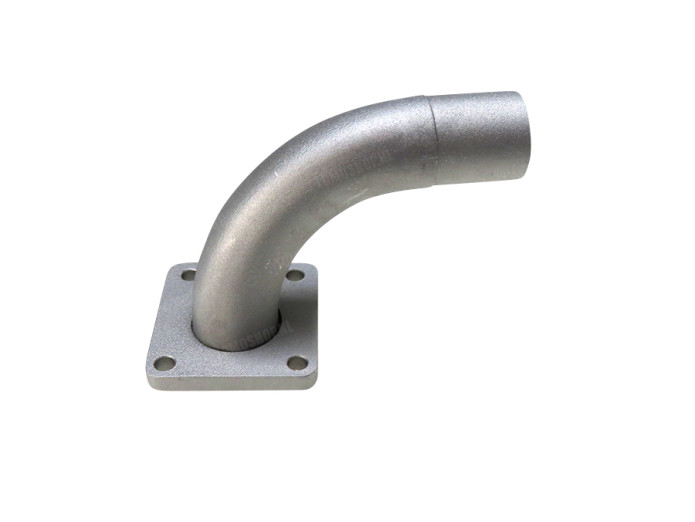

Manifold Tomos A35 19mm Dellorto PHBG / Bing 19mm / Polini CP sideways

Manifold Tomos A35 19mm Dellorto PHBG / Bing 19mm / Polini CP sideways

• Connection outer diameter: 25mm
• Also for Bing 19mm carburetor (25mm connection)
• Inner diameter: 19 mm
• Only for Tomos reed valve cylinders.
• Can also be used for a Puch Maxi Polini 65cc cylinder
• Suitable for 17.5mm, 19mm, 19.5mm and 21mm carburetors
• Use this manifold e.g. with PHBG / Bing carburetors or with rubber connection for Spigo / plug-in carburetors. Or shorten this manifold to create a custom manifold.

Note:

• Don't forget to order new reed valve gaskets.
• Doesn't fit with a E-start starter
• Normally a PHBG carburetor has a 24mm connection. Modify the manifold or the bush to make this manifold fit.


For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie
