Manifold Tomos A55 18mm 90 degrees with silicone coupler

Manifold Tomos A55 18mm 90 degrees with silicone coupler

• Made in USA, top quality!

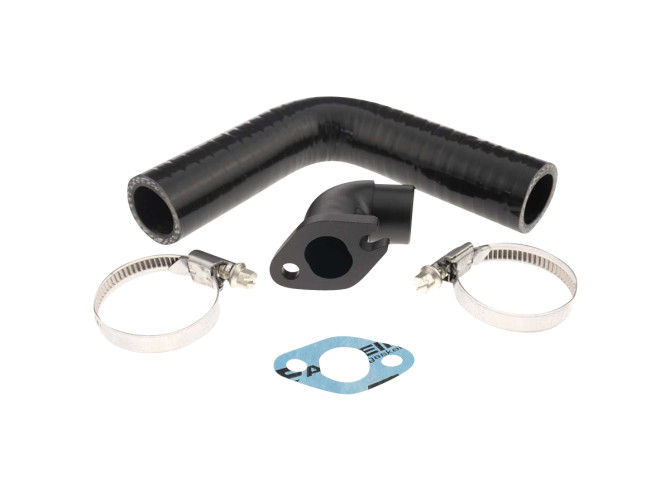

• CNC alloy 18mm manifold with 90mm silicone coupler, 2 hose clamps and gasket
• Manifold is black anodised
• Ideal for use with a Dellorto PHVA 17.5mm type carburetor and the original side covers
• You have to shorten the coupler yourself
• Can also be used with the carburetor sideways, make your own setup.

• Only for A55, not for A35 reed valve!

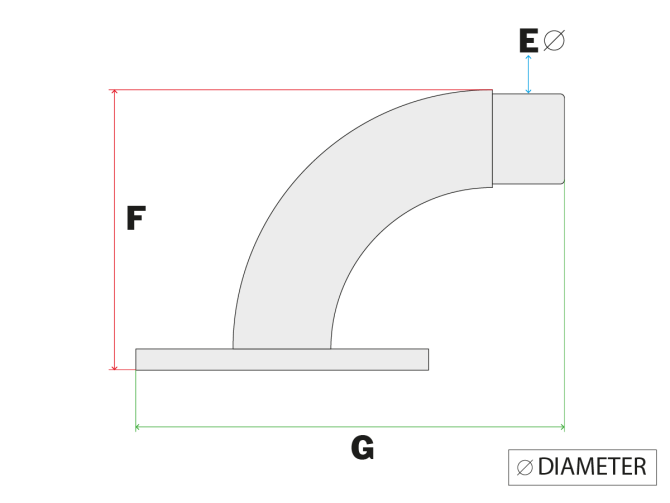

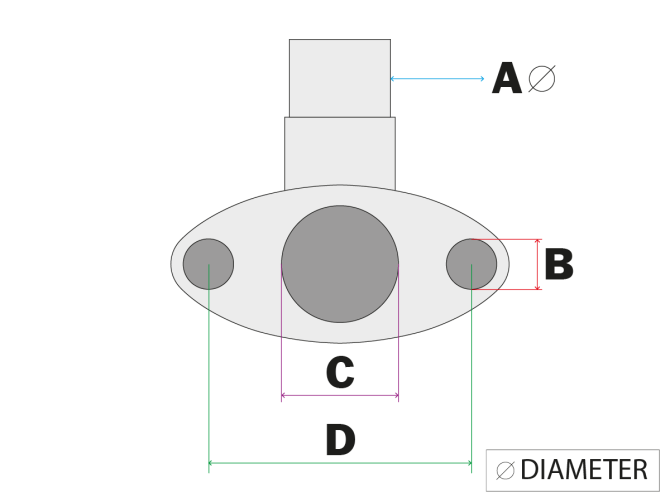

Dimensions:

• A: 18mm
• B: 6mm
• C: 15mm
• D: 32mm
• E: 24mm
• F: 48mm
• G: 51mm
