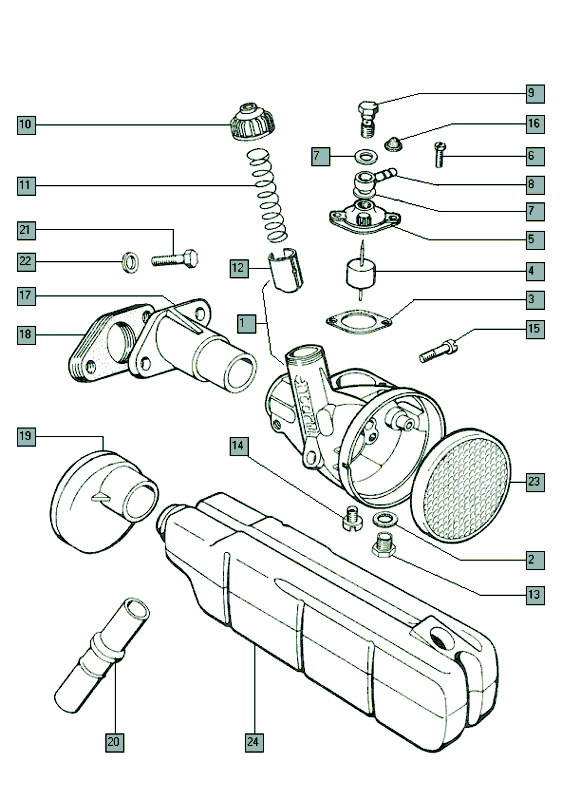

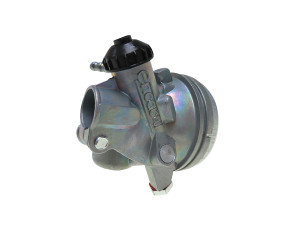

Tomos A3 carburetor (Bing 88A85/103)

1 219883 CARBURETOR

2 219886 FIBER RING

3 206771 GASKET

4 206770 FLOOR

5 206772 FLOOR COVER

6 27053 BOLT M4X10

7 44584 FIBRE RING 8X12

7 44584 FIBRE RING 8X12

8 206773 BANJO

9 206775 BANJOBOU

10 206763 THROTTLE SLIDE COVER

11 209003 FEAR

12 209118 THROTTLE SLIDE

13 219885 PLUG

14 217890 NOZZLE 52

14 219884 NOZZLE 50

15 27079 FISH M6 X 16

16 206774 STRAINER

17 209085 INLAABOCH

18 200382 SEE 227.146

19 209216 INTAKE RUBBER

20 214330 INTAKE TUBE

21 44284 BOLT M6X22

22 31932 RING 6

23 200384 AIR FILTER

24 209215 INLET SILENCER
