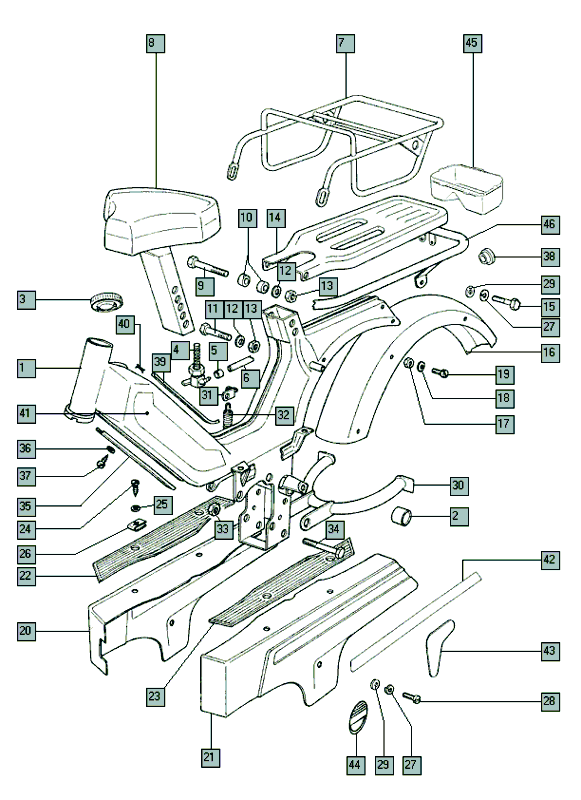

1 217832001 FRAME-WHITE
1 217832016 FRAME-ONTARIO BLUE
1 217832020 FRAME-BLACK
1 217832022 FRAME METALLIC RED
1 222511001 FRAME-WHITE
1 222511016 FRAME-ONTARIO BLUE
1 222511020 FRAME-BLACK
1 222511022 FRAME- METALLIC RED
2 209141 BUS FRAME
3 207394 SEE 213.953
3 213953 TANK CAP CHROME
4 209140 SEE 229.119
5 200592 HOSE CLAMP-NOT AVAILABLE
6 44531 PETROL HOSE PER METRE
7 222518 SEE 223.185
7 223001 LUGGAGE RACK-CHR.-NOT AVAILABLE
8 208609 SADDLE BLACK KPL.
9 25402 BOLT M8X75
10 209149 BUSHING
11 25398 BOLT M8X55
12 31933 WASHER 8
12 31933 WASHER 8
13 31077 NUT M8
13 31077 NUT M8
14 209169001 LUGGAGE CARRIER WHITE RAL 9003
14 209169016 LUGGAGE CARRIER-ONTARIO BLUE
14 209169020 LUGGAGE CARRIERBLACK GLOSS
14 209169022 LUGGAGE CARRIER RED METALLIC
15 26288 HEX BOLT M6X25 STAINLESS STEEL
16 217824001 SEE 227.878.001
16 217824016 SEE 227.878.016
16 217824020 SEE 227.878.020
16 217824022 SEE 227.878.022
17 31075 NUT M6
18 31995 RONDELLE RESSORT A6
19 26287 SEE 027265
20 209201001 SHIELD PLATE R. WHITE
20 209201016 SHIELD PLATE R.-ONTARIO BLUE
20 209201020 SHIELD PLATE R.-BLACK
20 209201022 SEE 219.398.022
21 209204001 RUNNING BOARD LH - A3 WHITE RAL 9003
21 209204016 SEE 229.282.016
21 209204020 RUNNING BOARD LH - A3 BLACK GLOSS
21 209204022 SEE 229.282.022
22 209207 RUBBER MAT R-NOT AVAILABLE
23 209208 RUBBER MAT L-BLACK
24 44423 SEE 044.438
25 211914 WASHER
26 44441 PLATE NUT 4.2
27 31845 SPRING SPRING B6
27 31845 SPRING SPRING B6
28 27077 BOLT M6X10
29 31932 WASHER 6
29 31932 WASHER 6
30 209145 STANDARD BLACK LACQUERED
31 209143 BRACKET FOR STANDARD SPRING
32 200609 STANDARD SPRING
33 31124 NUT M8X1
34 26040 SEE 026041
35 209176001 CONTROL CABLE COVER WHITE RAL 9003
35 209176016 CONTROL CABLE COVER BLUE
35 209176020 CONTROL CABLE COVERBLACK GLOSS
35 209176022 CABLE SCREEN RED METALLIC
36 31930 RING 4
37 44407 PARKER 4,2X9,5
38 217822 SEE 234385
39 213687 SEE 044.648
40 213688 SEE 207310
41 217733 TANK TRANSFER SET TOMOS
41 223006 TANK TRANSFER SET TOMOS
42 217736 TRANSFER 2-SPEED AUTOMATIC
42 223007 TRANSFER 2-SPEED AUTOMATIC
43 217737 TRANSFER KICKSTART
43 223008 TRANSFER KICKSTART
44 217278 TRANSFER
44 223009 TRANSFER
45 209209 TOOLBOX
45 223005 TOOLBOX
46 213818 LUGGAGE RACK
46 213838 SEE 223.598
