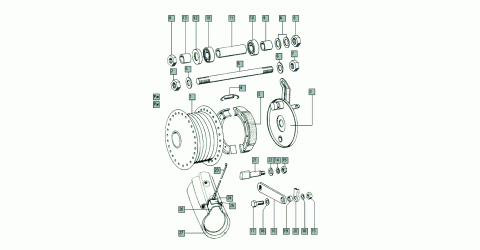

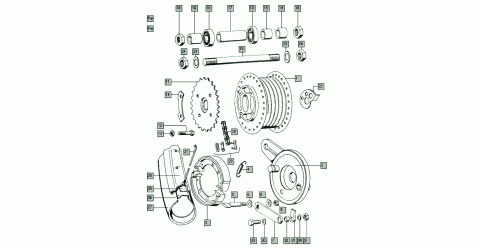

Tomos A3 rear wheel (spokes)

1 209245 HUB SLEEVE

2 209243 SEE 211.965

3 211071 BRAKE SEGMENT SET-NOT AVAILABLE

4 209257 SPRING

5 209238 BRAKE KEY

6 209239 RING

7 209258 BRAKE LEVER-NOT AVAILABLE

8 31932 WASHER 6

9 31075 NUT M6

9 31075 NUT M6

10 44228 BALL BEARING 6001-Z

10 44228 BALL BEARING 6001-Z

11 209261 REAR SPROCKET Z22

11 213256 A.TOOTHW. Z=24-NOT AVAILABLE

12 25208 BOLT M7X22

13 31076 NUT M7 CRANK SPIGOT

14 205742 LOCKING PLATE SPROCKET

15 209256 REAR AXLE

16 209263 DISTANCE BUSH

17 209262 DISTANCE BUSH

18 209249 NUT M11X1

18 209249 NUT M11X1

19 209253 DISTANCE BUSH

19 209253 DISTANCE BUSH

20 217137 RIM 16

21 219135 SPOKE CPL

22 209212 CHAIN TENSIONER

23 209254 WASHER

23 209254 WASHER

24 209277 NUT M11X1

24 209277 NUT M11X1

25 44926 RIM TAPE 16

26 44925 INNER TUBE 2.25X16

27 44924 OUTER TYRE 2.25X16

28 206499 CHAIN

28 207012 CHAIN-90 LINKS

29 202268 SEE 229.189

30 200248 RING

30 200248 RING

31 209260 CABLE CLAMP-NOT AVAILABLE

32 209275 RING

33 26288 HEX BOLT M6X25 STAINLESS STEEL

Parts 1 - 19 209241 NAAF CPL Z22

Parts 1 - 19 213257 NAAF CPL Z24

Parts 1 - 22 211631 SEE 229.202

Parts 1 - 22 219506 REAR WHEEL CPL Z=24
