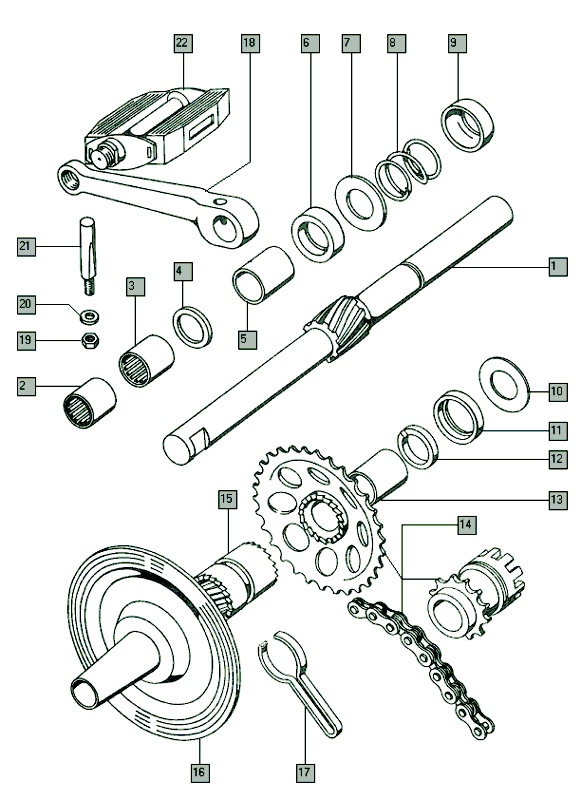

Tomos A3 starter / pedals

1 209046 BOTTOM BRACKET

2 35502 NEEDLE BEARING SCE 109P

3 35503 ROULEMENT A AIGUILLES SCE 108

4 205702 SPACER RING 2.0MM

5 200166 STUFFING BOX

6 200266 OIL SEAL 16X24X7

7 209224 RING

8 209099 THRUST RING

9 209096 CUP

10 200175 CALE 0.50 MM

10 205702 SHIM 2.0MM

10 206391 SHIM 1.00MM

10 209087 SHIM 0.2MM

11 200172 RING

12 200173 SPRING WASHER

13 209052 SPACER BUSHING

14 217583 STARTER KIT

15 209047 BUSHING STARTER GEAR

16 209069 PROTECTION PLATE

17 209048 SPRING BRAKE

18 200181 TRAIN 229217

18 200182 TRAIN 229216

19 31076 NUT M7 CRANK SPIGOT

20 200185 RING CRANK PLAY 7

21 200184 CRANK SPIGOT

22 44579 PEDAL STEEL
