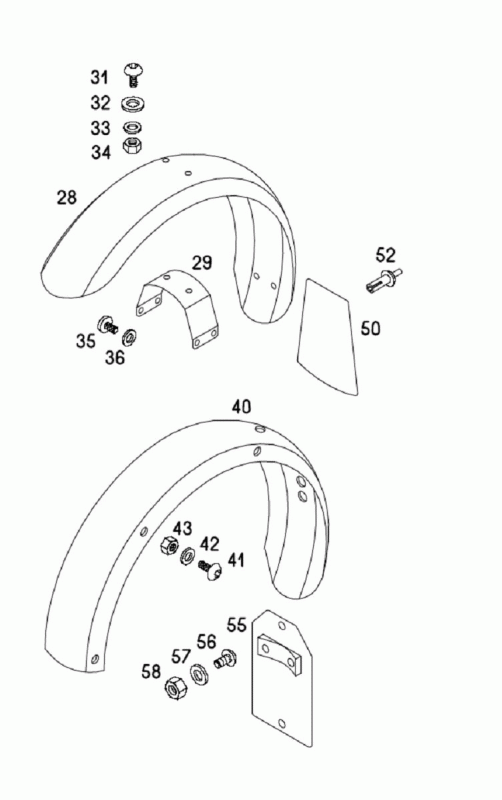

Tomos Classic XL mudguard

x 234455 TRANSFERSET CPL. CLASSIC

28 237213C51 FRONT MUDGUARD CHROME

29 242056C51 STABILISER-CHROME

31 26700 SOCKET SCREW M5X10

32 31508 WASHER 5

33 33502 FLANGE BOLT M5X12

34 30048 NUT M5-SELF-LOCKING

35 26706 SOCKET HEAD BOLT M6X12

36 31509 WASHER 6

40 222299 REAR WING CHROME

41 33510 FLANGE BOLT M6X10

42 31509 WASHER 6

43 33591 FLANGE NUT M6

50 234656 MUD FLAP

52 234664 CHUCK 5.0 LDPE

55 211838 NUMBER PLATE HOLDER

56 26700 SOCKET SCREW M5X10

57 31508 WASHER 5

58 30048 NUT M5-SELF-LOCKING
