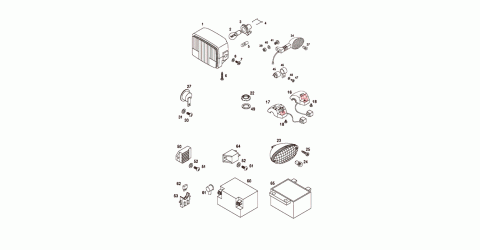

Tomos Flexer XL electronics

1 227100 HEADLAMP PLEN.

2 44701 BULB 12V-35/35W

3 227102 BULB SOCKET

4 214657 BLOCKING SPRING SOCKET

5 44693 BULB 12V-4W BA9S

6 44432 PARKER 3.9X25

7 31509 WASHER 6

8 26690 SOCKET SCREW M6X16

16 237129 SWITCH *R* WITH CABLE KPL.

17 237130 SWITCH *L* WITH CABLE KPL.

18 232859 SCREW M5X22

18 236977 CABLE HARNESS FOR

18 241091 CABLE HARNESS CONNECTOR

18 236978 CABLE HARNESS REAR

18 236979 WIRING LOOM TENSIONER

22 232918 FIXING NUT

23 232721 REAR LIGHT KPL.

23 232948 REAR LIGHT KPL.

24 44681 BULB 12V-21/5W BAY15D

25 44416 PARKER 4.2X32

27 236704 HORN 12V-AC/DC

30 26706 SOCKET SCREW M6X12

31 31509 WASHER 6

34 236854 FLASHING LIGHT KPL. RV/LA

34 236855 TURN SIGNAL CPL. 32-34

37 44689 BULB 12V-10W BA15S

39 27242 BOLT M5X16-BLACK

40 31922 WASHER 5

41 30048 NUT M5-SELF-LOCKING

45 222428 BLINKER

46 222422 RELAY HOLDER

49 206489 SHIM

50 230844 VOLTAGE REGULATOR (12 VOLTS)

51 26689 SOCKET BOLT M6X14

52 31845 SPRING B6

60 230888 BATTERY SEALED VERSION

61 230886 RUBBER CAP

62 230883 SICHERUNG F_R BATTERIE (7.5A)

63 230884 FUSE HOLDER

64 230843 START RELAY

65 236403 BATTERY HOLDER
