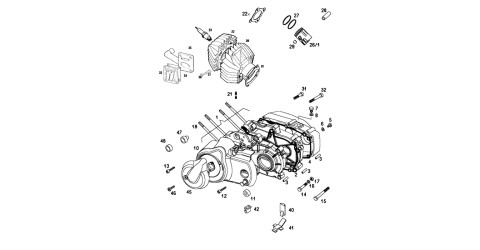

Tomos Flexer XL engine

x 237329 MOTOR 45 KM/H-BLACK-EX

1 230982 CRANKCASE

1 233178 RIGHT CRANKCASE LEFT AND RIGHT COVER BL

2 222098 CENTRAL GASKET ASBESTOS-FREE

3 223440 BUSHING 9.8X 16

4 232971 COVER GASKET

5 27264 SCREW M6X10

6 230172 SEALING RING A6X12

7 26311 SCREW M8X10

8 230173 SEALING RING A8X14

10 230859 COVER FOR KICKSTARTER

11 200294 CALE

12 26573 SOCKET BOLT M6X25

13 26636 SOCKET HEAD SCREW M6X40

14 26045 SCREW M8X1X90

15 26043 FISH M8 X 1 X 80

16 31933 WASHER 8

17 30049 NUT M8X1-SELF-LOCKING

18 205386SS THREADED ROD

19 233714 CYLINDER BASE GASKET 0.3 MM

20 229290 CYLINDER

20 229404 REPLACEMENT: T227868-A & T229290

21 240632 BOLT M6X25- STAINLESS STEEL

22 223466 CYLINDER HEAD

23 44511 SPARK PLUG W7AC / B6HS

24 44828 NUT M7 STAINLESS STEEL

25 44154 WASHER 7

26 227868 PISTON CPL. 38,0 X 50MM TYPE A

27 222041 PISTON RING 38.0X1.5MM

28 207408 AXIAL PISTON 12 MM

29 32039 CIRCLIP 12

31 26573 HEX BOLT M6X25

32 26582 FISH ALL M6X65

33 222238 INLET DIAPHRAGM

34 223748 GASKET

35 230815 INLET FLANGE

36 31931 RONDELLE 5

37 26686 SOCKET BOLT M5X20

37 236323 SHEAR BOLT

38 230812 PROTECTION PLATE

45 233411 COVER BLACK (FLAT)

46 233368 PARKER 3.0X14

47 230793 BEARING BUSH

48 230794 ROULEMENT

0 233560 GASKET SET ASBESTOS-FREE
