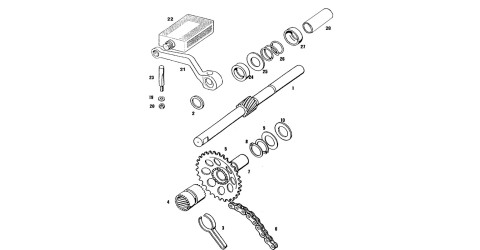

Tomos Flexer XL starter (pedals)

1 237269 BOTTOM BRACKET 245MM

2 205702 SPACER RING 2.0MM

3 209048 SPRING BRAKE

4 209047 BUSHING STARTER SPROCKET

5 217584 STARTER SPROCKET

6 217582 CHAIN

7 223448 DISTANCE BUSH

8 32073 CIRCLIP A16

9 206391 SHIM 1.00MM

10 209087 SHIM 0.2MM

10 200175 CALE 0.50MM

19 200185 RING CRANK SPIGOT 7

20 31076 NUT M7 CRANK SPIGOT

21 230291 CRANK CHROME (L+R)

22 222655 SET PEDALS

23 206714 CRANK SPIGOT TOMOS

24 200266 OIL SEAL 16X24X7

25 209224 RING

26 209099 COMPRESSION SPRING

27 209096 CUP

28 237318 DISTANCE BUSH
