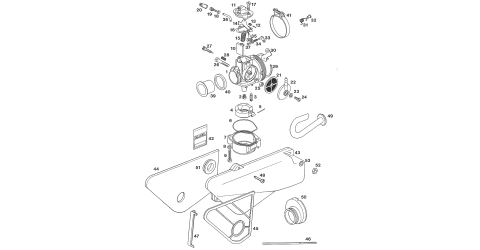

Tomos Flexer carburetor (Dellorto SHA)

1 230052 CARBURATEUR 25km/h

1 230260 CARBURETTOR

2 212465 NOZZLE 52

2 217919 NOZZLE 50

2 217940 GICLEUR 54

2 219581 NOZZLE 51

2 229827 GICLEUR 53

2 234155 NOZZLE 56

3 219589 FLOAT NEEDLE

4 219582 FLOAT

5 219593 STIFT

6 219594 GASKET

7 219595 FLOAT CHAMBER

8 31930 RING 4

9 27057 FISH M4 X 20

10 219580 THROTTLE SLIDE

11 219596 COVER CPL

12 219871 PIN

13 219872 FEATURE

14 219873 LEVER

15 219874 SPRING

16 219583 GASKET

17 219598 BOUT

18 219626 NUT

19 219625 VIS DE REGLAGE

20 219624 RUBBER GROMMET

21 219585 FUEL FILTER

22 219584 FILTER COVER

23 219780 FIBRE RING

24 27064 FISH M5 X 10

25 31075 NUT M6

26 27083 FISH M6 X 30

27 219587 ADJUSTMENT BOLT

28 219588 FUSE

29 219590 GASKET

30 223026 LEVIER DE CHOKE

31 219591 FEATURE

32 219592 BOLT

33 223025 LEVER

34 223027 SPRING

35 230259 CHOKE LEVER

36 219623 CABLE BEND

37 31073 NUT M4

38 31930 WASHER 4

39 227326 DOUILLE

40 227324 JOINT

41 219375 CLAMP 60MM

42 219875 GASKET SET

43 229769 INLET SILENCER

43 230069 INLET SILENCER

44 229704 FILTRE A AIR

45 229776 INTERMEDIATE PLATE

46 229702 SEALING RUBBER

47 229703 SUPPORT

48 44438 VIS 4.2 X 19

49 230046 TUBE SILENCIEUX

50 229705 RACCORD

51 229706 ILLET

52 31075 NUT M6

53 31932 WASHER 6

54 44115 BOLT M6X25
