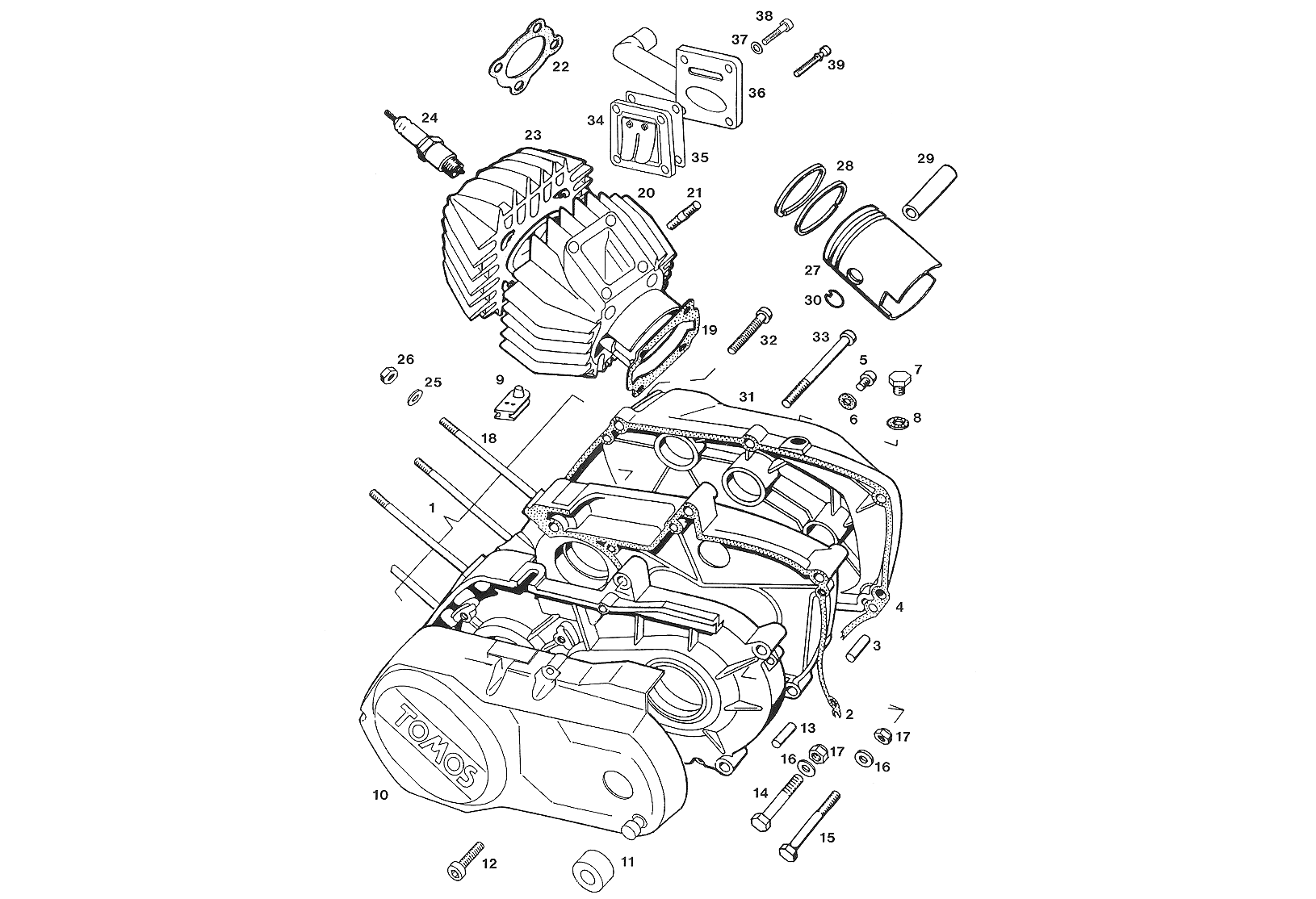

Tomos Flexer engine

1 227332 CRANKCASE-NOT AVAILABLE

2 222098 CENTRE GASKET-ASBESTOS-FREE

3 223440 SOCKET 9.8X 16

4 222087 SEE 232971

5 27264 BOLT M6X10

6 230172 SEALING RING A6X12

7 26311 BOLT M8X10

8 230173 SEALING RING A8X14

9 231015 GROMMET

10 223471 FLYWHEEL COVER

11 200294 CALE

12 26573 SOCKET BOLT M6X25

13 223440 SOCKET 9,8X 16

14 26041 BOLT M8X65

15 26043 FISH M8 X 1 X 80

16 31933 WASHER 8

16 31933 WASHER 8

17 30049 NUT M8X1- SELF-LOCKING

17 30049 NUT M8X1-SELF-LOCKING

18 205386 THREADED ROD

19 223796 FOOT GASKET (1.0MM)-ASB. FREE

19 227144 FOOT GASKET (0.3MM)-ASB. FREE

20 229324 REF. 229404

20 229290 CYLINDER

21 208201 STUD M6X25 STAINLESS STEEL

227998 HEAD GASKET 1,0MM (ALUMINIUM)

23 223466 CYLINDER HEAD

23 229288 CYLINDER HEAD

24 44511 SPARK PLUG W7AC / B6HS

25 44154 WASHER 7

26 31076 NUT M7 CRANKSHAFT KEY

27 223747 PISTON KPL. 38.0 X 50MM TYPE A

27 227334 PISTON 38.5X50-NOT SUPPLIABLE

27 227848 PISTON 38.5X50-NOT SUPPLIABLE

27 227868 PISTON KPL. 38.0 X 50MM TYPE A

28 222041 PISTON RING 38.0X1.5MM

28 227758 PISTON RING 38.5X1.5MM

29 207408 AXE PISTON 12 MM

30 32039 CIRCLIP 12

31 222202 CRANKCASE COVER R. (KICKST. ENGINE

32 26573 SOCKET BOLT M6X25

33 26582 FISH ALL M6 X 65

34 222238 INLET DIAPHRAGM

35 223748 GASKET

36 229707 INLET FLANGE

36 230045 INLET FLANGE

37 31931 RONDELLE 5

38 26566 SOCKET BOLT M5X20

39 227339 SHEAR BOLT

40 227331 GASKET SET ASBESTOS-FREE

41 229775 MOTOR CPL (ISKRA ELEC.ONTST)

42 230059 MOTOR CPL (ISKRA ELEC.ONTST)
