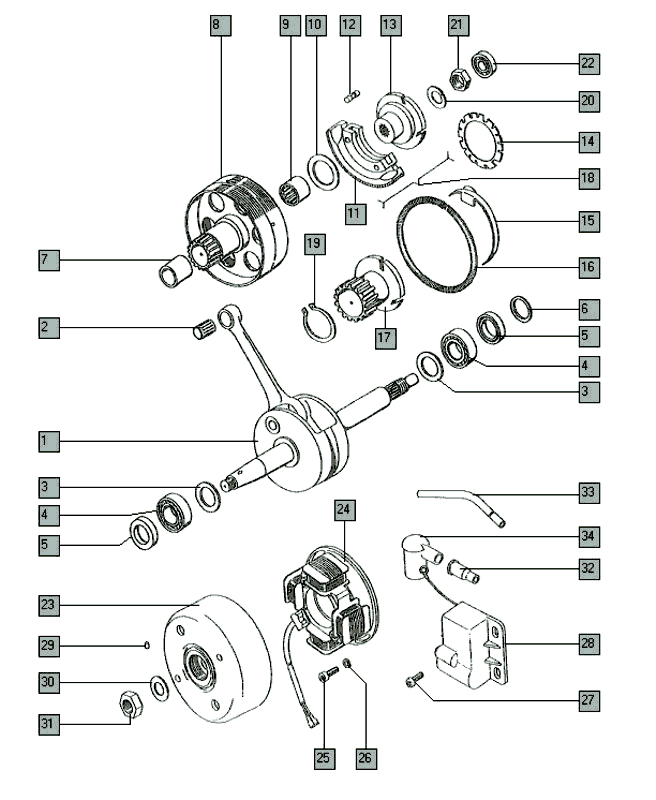

Tomos Classic crankshaft

1 223421 CRANKSHAFT

1 227459 KEYWAY

2 35548 NEEDLE BEARING 12X15X15

3 212957 SHIM 0.20MM

3 212958 SHIM 0.20MM

3 212959 SHIM 0.20MM

3 212957 SHIM RING 0.20MM

3 212958 SHIM RING 0.20MM

3 212959 SHIM 0.20MM

4 35070 CRANKSHAFT BEARINGS 6203 C3

4 35070 CRANKSHAFT BEARINGS 6203 C3

5 44838 OIL SEAL 17X35X7/6

5 44838 OIL SEAL 17X35X7/6

6 223468 STUFFING RING

7 223470 BEARING BUSH

8 223423 CLUTCH HOUSING KPL.

9 35554 NEEDLE CLUTCH

10 209073 SHIM 0.30MM

10 209119 CALE 0.50MM

11 223432 CLUTCH SEGMENT EACH

12 223434 PEN

13 223429 CLUTCH HUB-1ST GEAR

14 209002 RONDELLE RESSORT

15 209039 BANDE

16 209013 CLUTCH SPRING

16 223769 CLUTCH SPRING

17 223435 CLUTCH HUB-2ND GEAR

18 223436 CLUTCH CPL-2ND GEAR

18 227849 EMBRAYAGE CPL-1ERE

19 32083 CIRCLIP A28

20 31848 WASHER B10

21 215487 NUT M10 X 1

22 35202 BALL BEARING 609 22X8

23 230329 FLYWHEEL

24 230328 SEE 233156

25 26657 SOCKET SCREW M5X15 STAINLESS STEEL

26 31867 CORRUGATED SPRING WASHER 5

27 27247 SCREW M5X10

28 230627 IGNITION COIL CDI

29 200048 GUIDE 3 X 5

30 229919 WASHER

31 215487 NUT M10 X 1

32 210175 TULE

33 44528 CABLE D'ALLUMAGE AU METRE

34 211977 SPARK PLUG CAP
